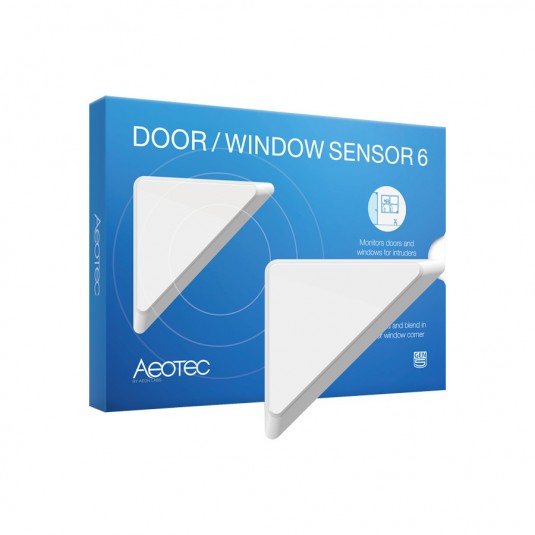

Aeotec Z-Wave Door Window Sensor 6
Details
Any door. Any window. Any home.
Invisibly.
Designed to blend into any home and any décor. With Door / Window Sensor 6 your Z-Wave system will have intelligence about the key doors and windows in your home. It’ll know when they’re open. It’ll know when they’re shut. And it’ll know when they’ve been opened and they shouldn’t be.
Armed with this powerful yet seemingly simple information, your Z-Wave enabled home can now make intelligent decisions for you... automatically. Making your home not only smarter... but safer and more secure too.

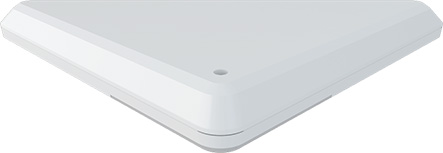

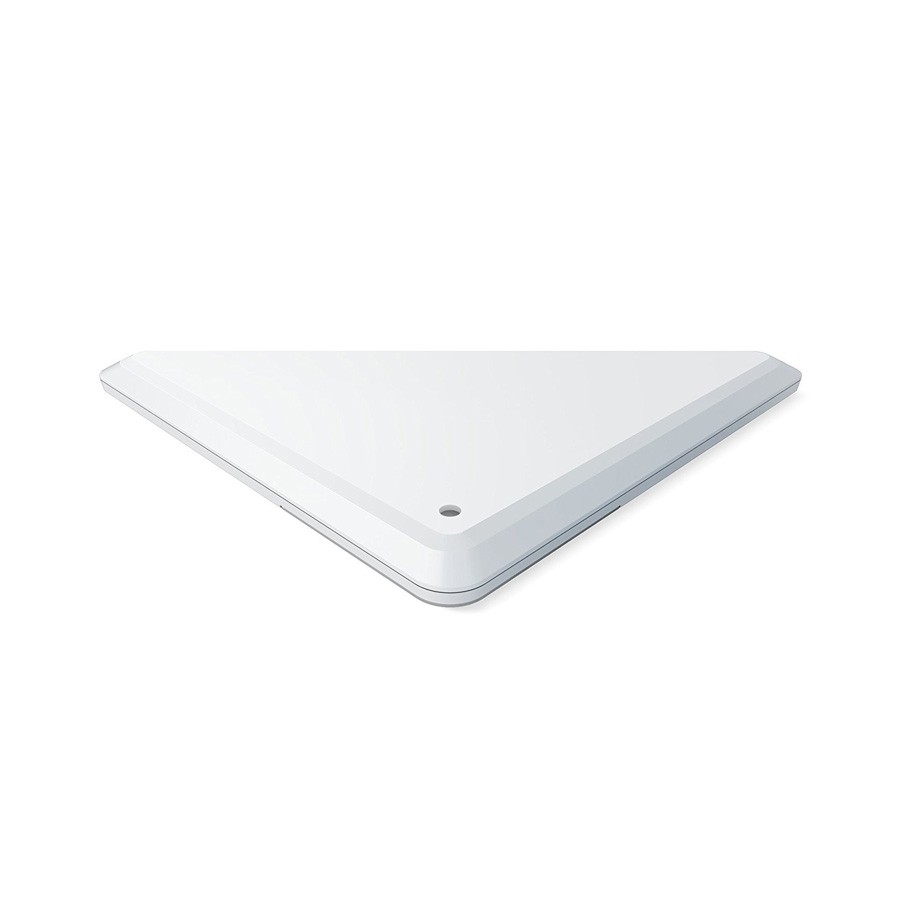

Amazingly slim.
Just 9mm thick.
Traditional door / window sensors have always been bulky. There’s no nice way to say it: they’ve been ugly. Door / Window Sensor 6 is different.
More than 50% thinner than its competition, Door / Window Sensor 6 marries form with function. It offers the same, necessary functionality that you need from a door/window sensor... but it packages it all within a beautifully designed device that is only 9mm deep and 72mm along the edge.
Any door.
Any window.
Any décor.

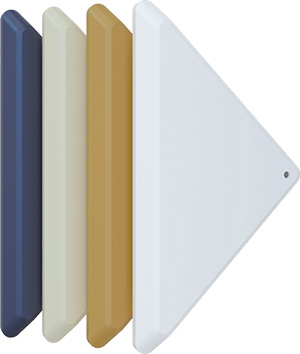

Designing a device that was small enough to not be noticed wasn’t enough. Door / Window Sensor 6 had to be nearly invisible.
Crafted from ABS plastic, Door / Window Sensor 6 has been designed to be easily painted. So whether your door is white or wood, or even if your window is dark aluminium or something more traditional, Door / Window Sensor 6 can be painted to blend in.

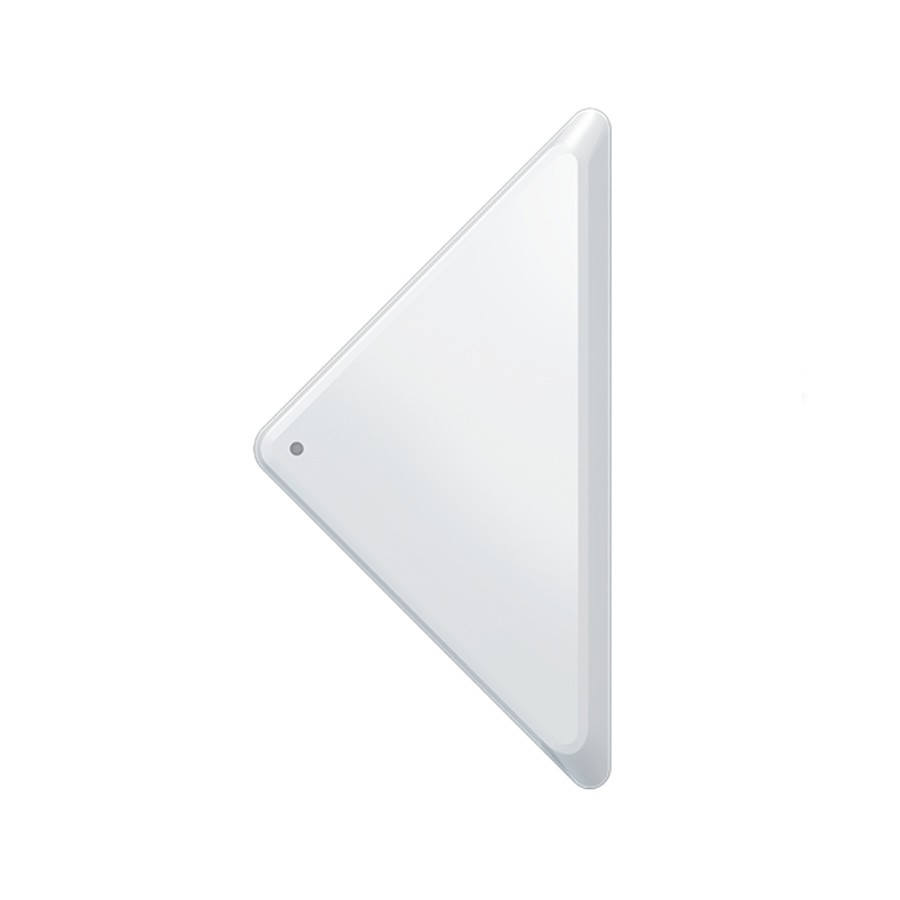

Accuracy to a fault.
Faultlessly.
Despite being so slim, Door / Window Sensor 6 doesn’t compromise on accuracy or quality.

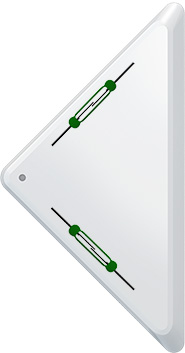

Whenever a door or window is opened, you want to know and this tiny sensor will detect it faultlessly. Door / Window Sensor 6 is built with 2 powerful magnetic reed switches placed along its edge. They’ll communicate with a provided slim-line magnet that measures only 2mm wide and can be placed up to 2.2cm away.

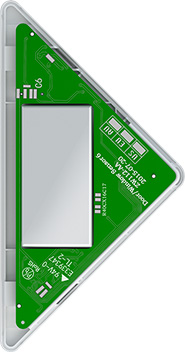

Rechargeable Lithium-ion.
A battery that lasts.
You want intelligence from a sensor... but having to change batteries every few months is not very smart. Built from technology designed for leading smartphones, Door / Window Sensor 6’s battery lasts for over 1 year on windows and 10 months on frequently used doors. When required, simply remove the sensor from its mounting plate and recharge it over a few hours via USB.
Door / Window Sensor 6’s perfect mix of slim design and strong battery performance is possible because it’s powered by 500mAH batteries and Aeon Labs’ Gen5 Z-Wave Plus technology. That means strong battery performance is coupled with wireless technology that uses 67% less power to communicate.
Simple to use.
Just as simple to install.
Door / Window Sensor 6 has been engineered with 3 parts; a sensor, an invisible mounting bracket and a slim magnetic shard. Each part isn’t only responsible for making Door / Window Sensor 6 so powerful, but also for making it so easy to install.

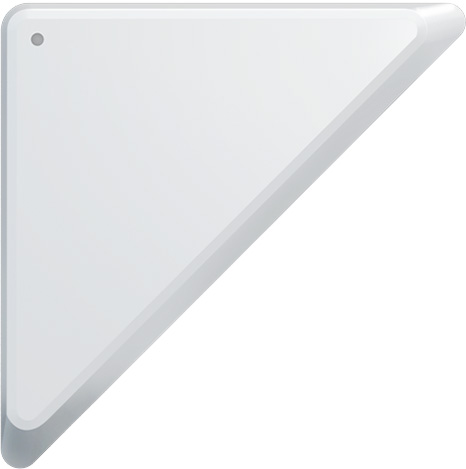

Sensor.

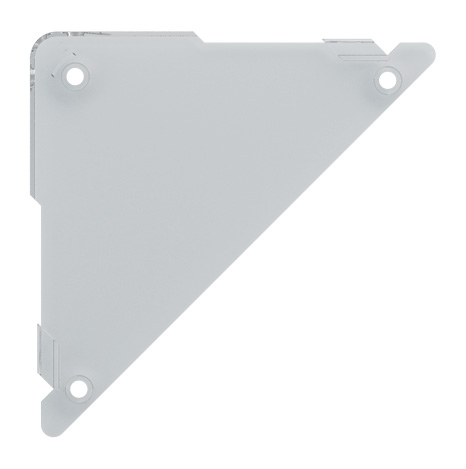

Mounting bracket.
Magnetic shards.
Both the mounting bracket and the magnetic shard can be installed in moments with options including double sided tape, tiny screws and even a dab of glue. Once that’s done, the main sensor simply needs to be connected to a Z-Wave network and attached to its mounting plate.
In minutes, you’re done.
Engineered to be smarter.
Engineered to be better.
Intelligence for more than just security... Door / Window Sensor 6 can be used to manage your home in real-time. Able to control any other Z-Wave device, when something in your home is opened or closed you’ll be able to control everything from welcome lights to thermostats and more.
Z-Wave Plus.
The newest Z-Wave. The best Z-Wave. Door / Window Sensor 6 is built upon Z-Wave Plus and Aeotec’s leading Gen5 technology to offer you the fastest response times and optimal battery life.
Superior Wireless Range.
The better the wireless range... the more reliable the product. Door / Window Sensor 6 offers class-leading reliability - this tiny sensor can communicate wirelessly up to 150 metres.
Wireless Updates.
Smart today, smarter tomorrow. Whenever new firmware is released, you’ll be able to update Door / Window Sensor 6 wirelessly via your Z-Wave controller using "Over-the-Air" updates.
Secure Security.
If you’re using a sensor for security you want its communication to be secure. That’s why Door / Window Sensor 6 utilises AES-128 wireless data encryption to keep it completely secure.
Trigger Security.
Your Z-Wave security system will be smarter. If your connected-alarm is armed, Door / Window Sensor 6 can trip it, control lights and sirens and send notifications direct to your mobile phone.
Activate Scenes.
Create the prefect scene for your home and have Door / Window Sensor 6 activate your Z-Wave devices automatically when you open a door. It's clever enough to turn them off when you leave too.
The finer details
- RF Protocol: Z-Wave Plus.
- RF Frequency: 921.42Mhz ‐ AU/NZ approved RF for Z‐wave.
- Wireless Range: Up to 30m without obstacles.
- Updates: Supports Over-the-Air firmware updates.
- Security: AES-128 Wireless Data Encryption.
- Power: Rechargeable Lithium battery, 3.7 V, 500mAh.
- Battery charger input: Micro USB port, DC 5V±0.5V, max 1A.
- Operation temperature: 0℃ ~ 40℃.
- Water proofing: IP20 (indoor use only).
- Dimensions: 72mm x 72mm x 9mm.
Additional Information
| Name | Aeotec Z-Wave Door Window Sensor 6 |
|---|---|
| Brand | Aeotec |
| Model | ZW112 |
| Product Manual | Aeotec Z-Wave Door Window Sensor 6 Product Manual |
| Warranty | 12 Months (+ Free 12 month extended warranty) |
| RRP | $89.00 |
